Loading and Unloading Table

Loading and Unloading Table

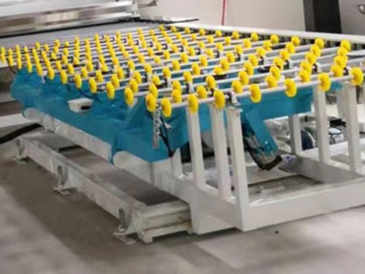

Huacai glass Loading and Unloading Table decreases the time and effort glaziers spend and increases the glass processing efficiency. Auto positioning of loaded glass sheet is enabled to ensure the glass laminating and roll pressing accuracy and save interlayer membranes. The glass loading table includes two types: loading stations set on one or two sides. Customers can choose a suitable one according to individual needs.

Specifications

*The parameters below are only for your reference. Customization service is available.

Table size3400×6000mm
Table height900±10mm
Max. glass size3400×6100mm
Glass thickness3-19mm
Glass loading speed0.6-5m/min
Loading arm6 on 1 side
Suction cup18 on 1 side
Work station1 station on 1 side
Max. vacuum pressure≥-0.085Mpa
Total power10.48KW
